Humidifier Bottle Set Humidifier Bottle Original Full set Nasal oxygen tubeDisinfection Sterilization Hygiene
一、Product name, model, and technical indicators：

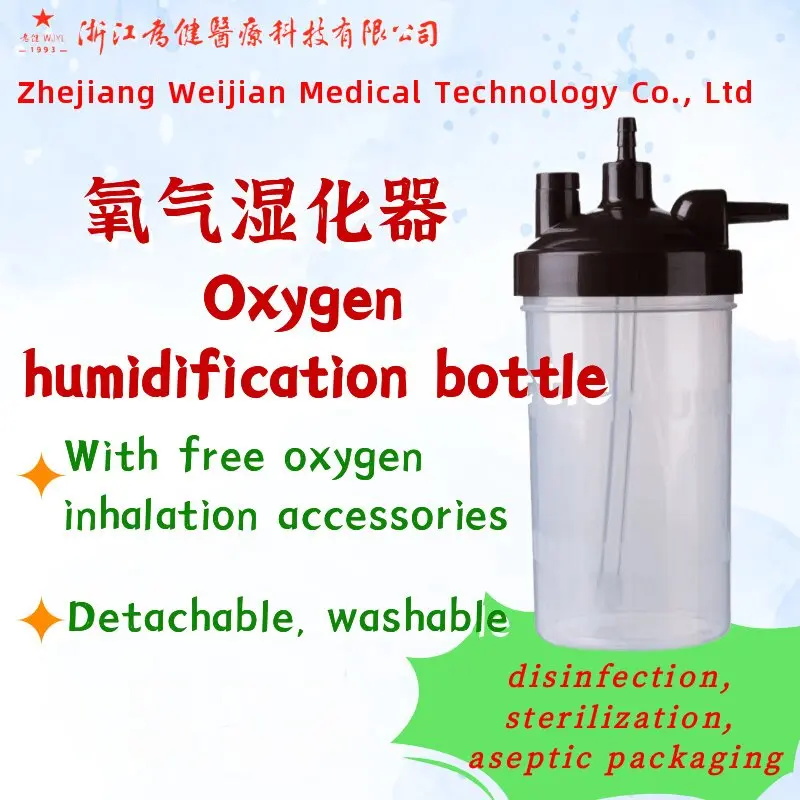

Product name: Medical oxygen humidifier
Product model and specification: WJ-501W / 18A
Production batch number, production date: see the product label
二、Product Parameter：
1、Product Appearance：
① The humidifier surface is smooth, with no obvious burrs, sharp corners, or defects.；
② Transparent, no obvious impurities, foreign objects, bubbles and other defects visible to the naked eye.
2、product size：
|
Divide the instructions model |
Wet size |
|||
|
|
Bottle diameter (mm) |
air intake (mm) |
air drain (mm) |
humidifying fluid measure |
|
WJ-501W/18A |
ф75±5 |
ф8±1 |
ф8±1 |
200mL |
|
Note: The diameter of the bottle, air inlet and outlet of the humidifier is the value of the maximum interface. |
||||
Bottom diameter of bottle:7cm
Total height (including bottle cap):16cm
Inlet diameter:8mm
Outlet diameter:8mm
Maximum recommended traffic:5ml
Flow range:0.5-5L/min
三、Scope of application：
A medical oxygen humidifier for use on a single medical oxygen concentrator (oxygen generator) for humidification and delivery of medical oxygen, 93% oxygen and other oxygen-containing medical gases to the patient to increase the water content in the gas delivered to the patient.
Contraindications: surgical patients, severe patients are prohibited.
Fully plastic shell, polypropylene resin PP (transparent plastic cup), safe and reliable.
